Product Description

Our Mannok Therm Wall (MW)/ Floor (MF) is a high performance, fibre free board, with a rigid thermoset insulation core and faced on both sides with a low emissivity composite foil facing. The low emissivity foil facings increase the thermal resistance an unventilated cavity adjacent to the insulation, reducing the overall U-value of the wall.

Specification:

• Certified under BBA certificate number 07/4444
• Low thermal conductivity, minimising the thickness required to achieve the design U-value.
• Zero ozone depletion potential (zero ODP) and low global warming potential (GWP)
• Achieves an A+ rating when compared to the BRE Green Guide

Performance & Properties:

• Board size: (mm)1200mm x 2400mm
• Thickness: (mm)20mm – 200mm
• Thermal Conductivity (λ): 0.022w/mk
• Facers: Low emissivity foil facers
• Core water vapour resistivity: ≅300MNs/gm
• Compressive strength: >140kPa

Them Wall (MW) Applications:

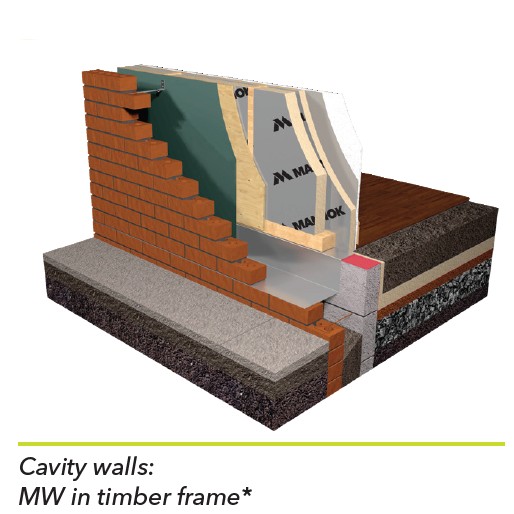

• Insulating timber frame cavity walls

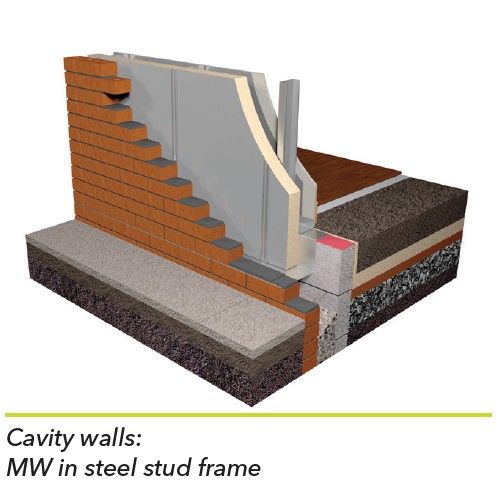

• Insulating steel stud frame cavity walls

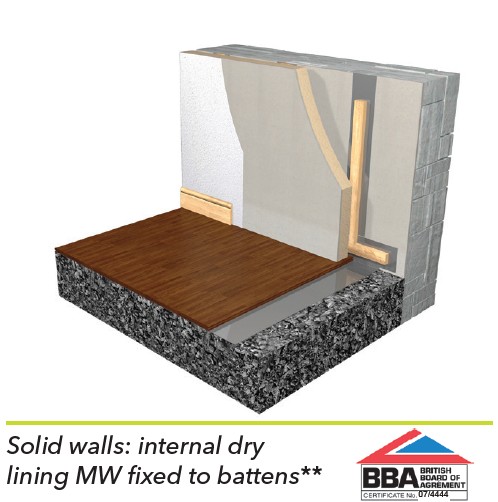

• Insulating solid walls with internal dry lining – insulation boards fixed to battens

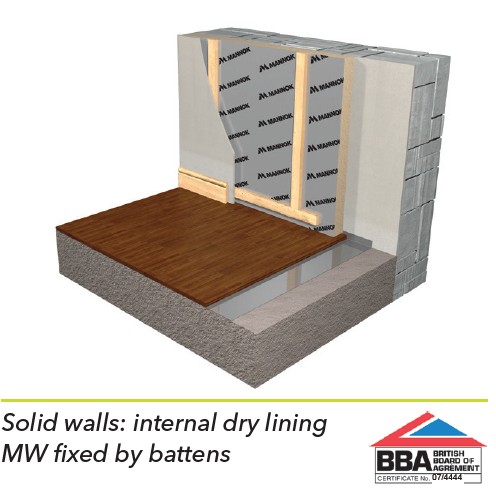

• Insulating solid walls with internal dry lining – insulation boards fixed by battens

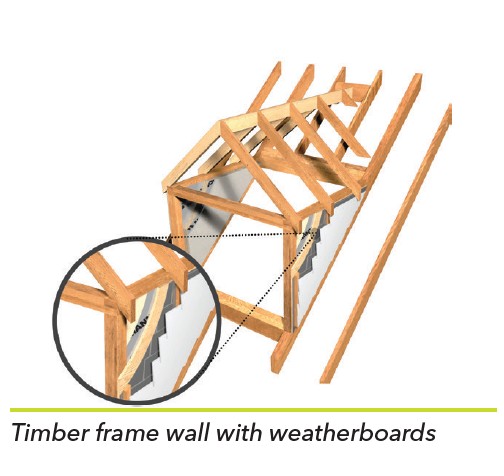

• Insulating timber frame walls with weatherboards
• Insulating a loft or attic wall in pitched roof space

Them Floor (MF) Applications:

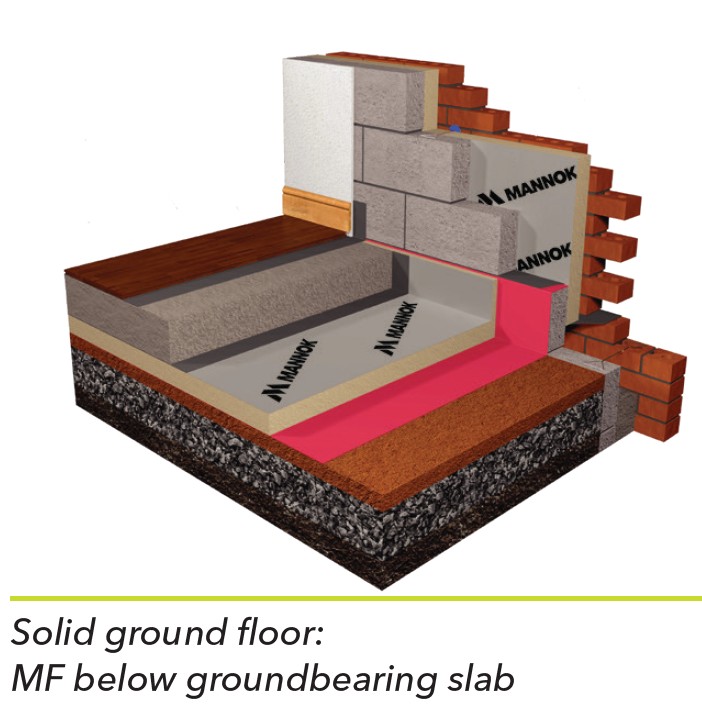

• Insulating solid ground floors below ground bearing slab

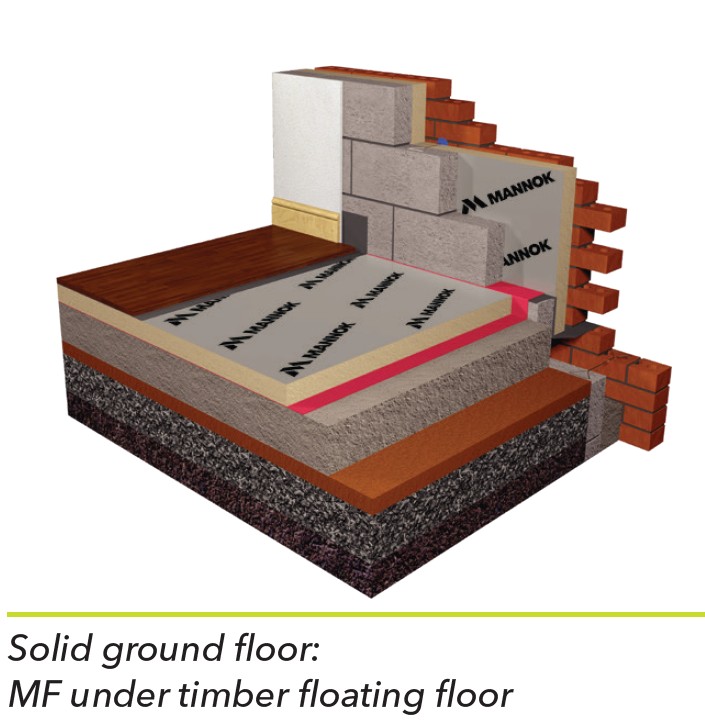

• Insulating solid ground floors with a timber floating floor

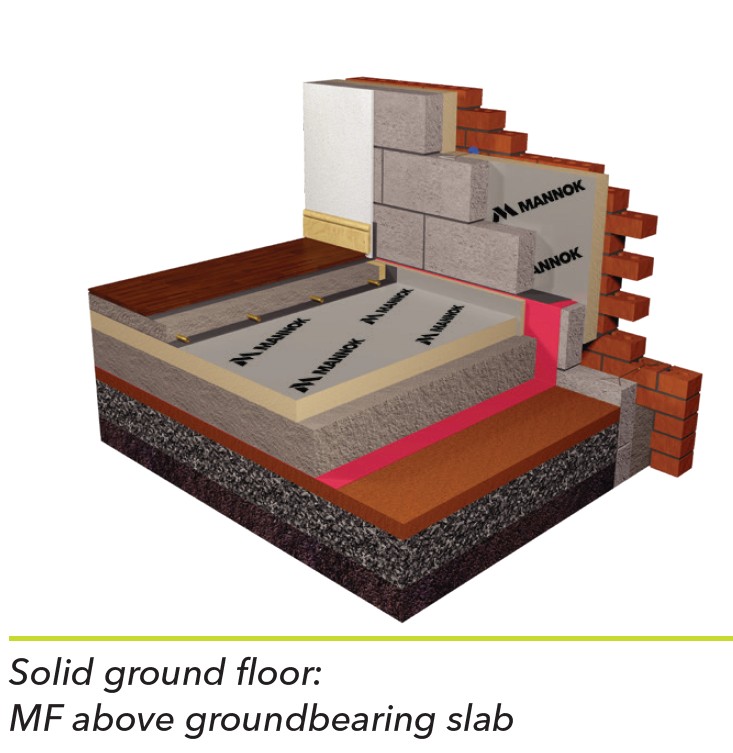

• Insulating solid ground floors above ground bearing slab

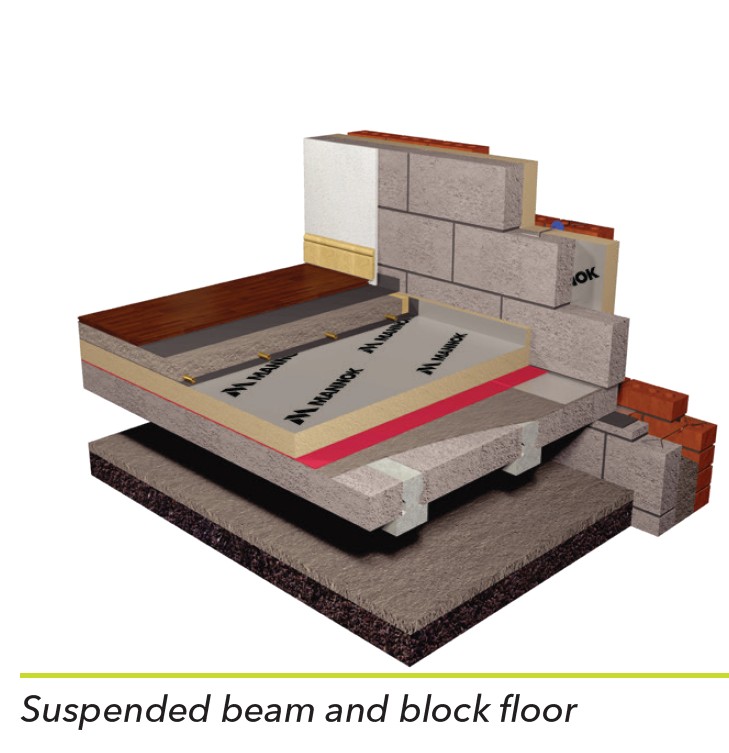

• Insulating suspended beam and block floors

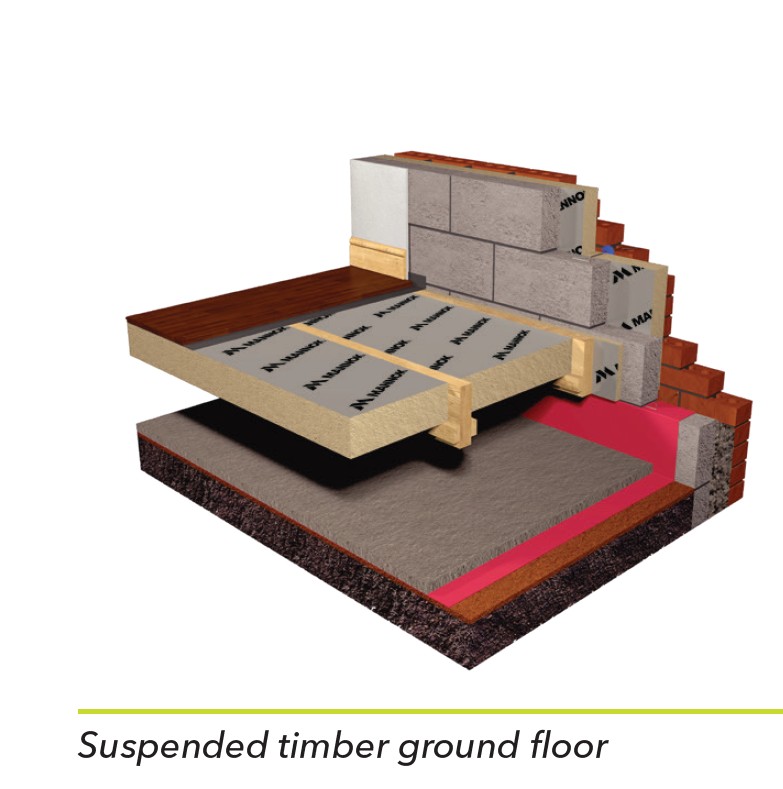

• Insulating suspended timber ground floors between timber joists

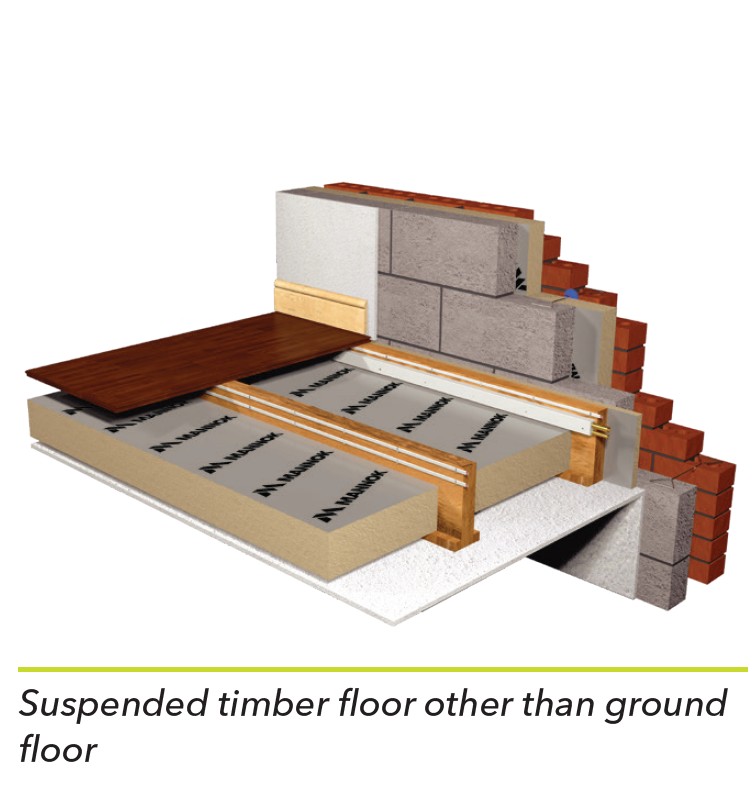

• Insulating suspended timber floors other than ground floor between timber joists

For further information regarding technical detail and conformance, please refer to the manufacturers literature in the product downloads.

If you are having difficulty in finding the exact product you require or need some expert advise on specifying the correct product for your project, please get in touch with WBS Ltd and our dedicated team we will be more than happy to help.
